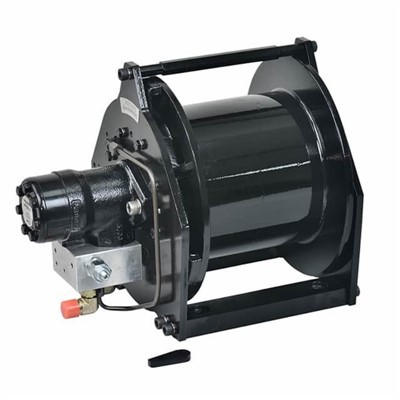

Wɔ hydraulic winching dwumadie mu no, adeɛ biara nni hɔ a ɛyɛ adwuma yie sene HORN-DRIVE winch. Hydraulic Motors a ahoɔden wom ma kwan ma wɔyɛ adwuma bere tenten. Dade a ayɛ den, abien-stage Planetary Gear Trains de adwumayɛ a etu mpɔn na wotumi de ho to so ka ho a ɛyɛ ntɛmntɛm line ahoɔhare. Te sɛ wɔn nuanom mmarima a wɔde anyinam ahoɔden yɛ no, saa nneɛma yi di wiase-wiase nyinaa gyinapɛn ahorow a ɛfa nneɛma pa ne ahobammɔ ho so.
Su
80cc Hydraulic Motor a ɛyɛ adwuma yiye
Na 15000 lb Tumi, Kɛse Ma Trailers, Roll Back Carriers, Ne Asɛyɛde a emu yɛ den Nnwuma.
Spring Applied Disc Breki a Wɔayɛ no
Sɛnea Wobɛkura Adesoa a Wɔahyɛ no Nyinaa.
Okyinnsoromma Gear a Ɛwɔ Afã Abien
Wɔayɛ no titiriw sɛnea ɛbɛyɛ a ɛbɛyɛ mmerɛw sɛ wɔde besisi hɔ na ɛyɛ fɛ.
Abisadeɛ
Wɔ Tow Truck, engineering kar, lɔre, trakta, rollback, skid steer, bobcat, jeep, excavator, atv, utv, suv.
★ 15000 lb hydraulic winch nyɛ uesd mma ma so.
NKYERƐKYERƐMU NKYERƐKYERƐMU
| Rated line twetwe | 15000 lbs (kg 6803) na ɛwɔ hɔ. |
| Motor:magnet a ɛtra hɔ daa | 80ml/r |
| Ngo a ɛsen fa mu | 5-40L/simma |
| Nhyɛsoɔ | 14MPa na ɛwɔ hɔ |
| Breki a wɔde hyɛ mu | Breki a ɛyɛ adwuma ankasa |
| Geartrain a wɔde hyɛ nneɛma mu | 2-stage okyinnsoromma so nneɛma |
| Gear a wɔtew so ratio | 27:1 |
| Clutch a wɔde hyɛ mu | akwankyerɛ |
| Nhama (Dia × L) . | Ø10mm×24m na ɛwɔ hɔ |
| Drum kɛse(Dia × L) . | Ø3.5 "×8. 6" (Ø89mm × 220mm) |
| Mounting bolt nhwɛsode | 10 "×4.5 " (254mm × 114.3mm) 4-M12 |
| Net mu duru | 98lbs (44KG) na ɛwɔ hɔ. |
Installation nsusuwii ahorow
ADWUMA HO NKYERƐKYERƐMU (ade a edi kan) .
| Line twetwe lbs(kgs) 1000. |
Tene G/simma(L/simma) . |
Line ahoɔhare ft/simma(m/simma) . |
| 0 | 1.3(5.0) | 1.64(0.5) |
| 4000(1814) | 2.6(10.0) | 3.6(1.1) |
| 8000(3628) | 5.3(20.0) | 7.2(2.2) |
| 12000(5443) | 9.2(35.0) | 12.4(3.8) |
| 15000(6803) | 10.6(40.0) | 16.4(5.0) |
Line Twe Na Nhama Tumi Inlayer(HWN15000)
| Layer a wɔde waya hama ayɛ | Rated line twetwe lbs(kgs) 1000. |
Total hama wɔ sanku so ft (m) . |
| 1 | 15000(6803) | 16.4 (5.0) |
| 2 | 13454(6103) | 37.2(11.3) |
| 3 | 11210(5085) | 60.9(18.6) |
| 4 | 9596(4353) | 83.7(25.5) |
